Double SZLH508 Animal Feed Pellet Manufacturing Plant 30TPH

Model

Double SZLH508 Feed Pellet Manufacturing Plant

Capacity

30t/h

Main equipments

crusher, mixer, pellet machine, cooler, packing machine

Application

For producing poultry feed pellet, such as chicken,duck,bird,etc.

Pellet forming rate

98%

Main motor

Siemens

Send Email

Chat now

Share With :

Description

Features

Parameters

Inquiry

Description

30t/h Feed Pellet Production Line

This animal feed pellet production line can be used for processing livestock, poultry, and aquatic feed pellets, which is especially suitable for big feed factories, and breed farms. It has better raw material versatility, which can be suitable for pelletizing many kinds of raw materials, such as corn, broom corn, wheat, beans, oil seed meal, and other materials. And also, this manufacturing plant for animal feed has the features of low energy consumption and high production efficiency for larger profits. We provide free charge of installation, and training, factory designing, and timely after-sale service.

Efficient

Stable

Low Consumption

Mature Technology

Profitable

Easy Maintenance

Production process of Animal Feed Production Line

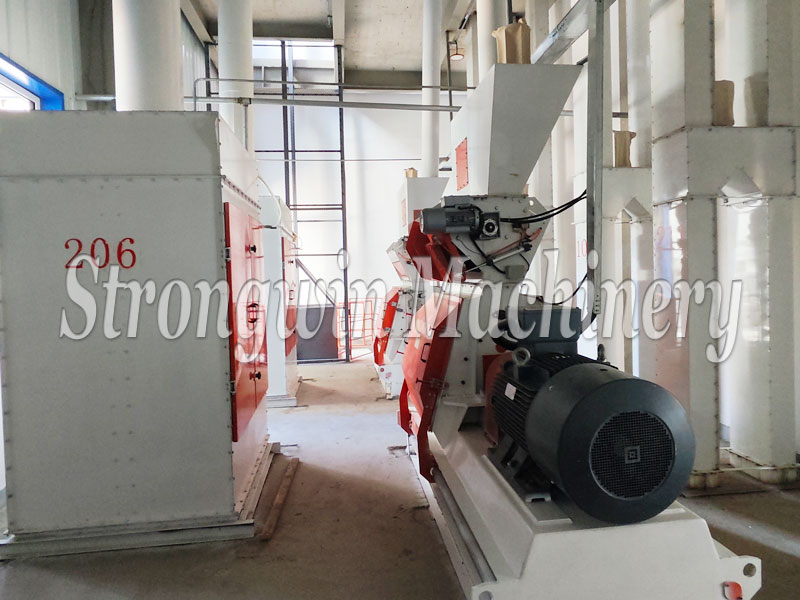

Hammer Mil: Crush the material into small particles suitable for pellet making.

Mixer: Mix different raw materials discharged by the batching scale together evenness.

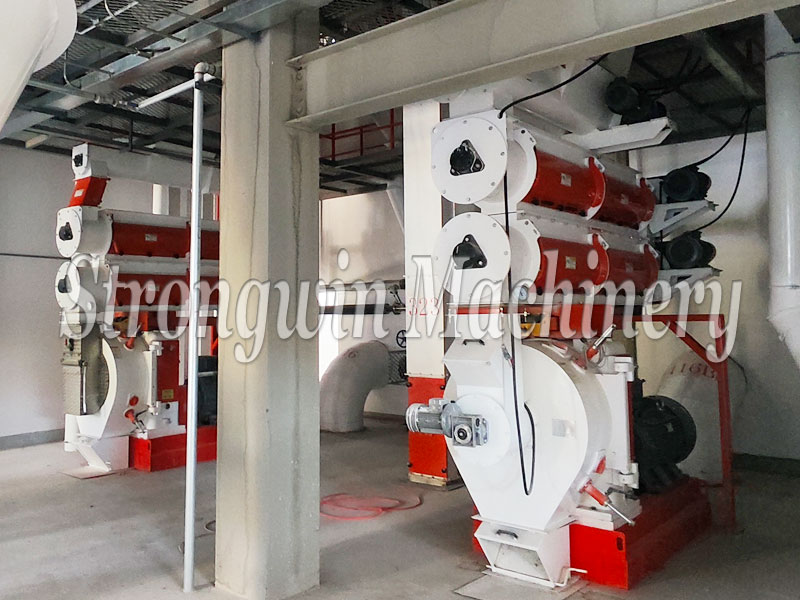

Pellet Machine: press the mixed well material into feed pellets,

Cooling Machine: For cooling the final pellets to normal room temperature.

Pellet Crumbling Machine: Crumbling the final feed pellets into small pieces(small animal needs).

The end of the process in every plant is bagging also called packing. After screening the finished products are filled into bags.

Application

Livestock feed pellet production line makes 2-8 mm diameter animal feed pellets. Such as 2-4mm diameter chick feed pellets and pig feed pellets.2-5mm rabbit feed pellets, 4-8mm cattle or sheep feed pellets. The last pellet length can be adjusted.

After installation and adjustment, we will train our customers to work how to operate;

Training workers on how to maintain and protect.

According to features, we will make complete maintenance rules for you, containing how to maintain, when to maintain, and who maintain

Our company after-sale department will call you at regular intervals, ask if maintain and give advice.

Features

Why to Choose Animal Feed Production Line?

Full automation of the complete production line

Manufacturing according to internationally advanced technology standard;

Gear driving system, with good transmission rate, stable and reliable performance, and low noise;

Raw material contacting parts are made by stainless steel;

Super quality of Henan Strongwin Animal Feed Production Machine

Material thickness of main equipment is more than feed machinery standard 2mm;
The weight is heavier than feed machinery by 20%.
Output higher 20%;
The feed rate of return increases by 3-5%.

Parameters

Technical Parameters of main equipments for double SZLH508 30T/H poultry feed pellet production line
No.	Product	Model	Power(KW)
1. material receiving section
105	granule material clean sieve	SCY80	0.75
2. material grinding section
206	Tear-circle hammer mill	SDH-ZW50C	1.5
211	Tear-circle hammer mill	SDH-ZW80B	90
3. batching and mixing section
313	double shaft high efficient mixer	SSHJ.2	18.5
316	double shaft high efficient mixer	SSHJ.4	30
4. pelleting section
407	Pellet machine	SZLH508	132
409	counter-current cooler	SKLN6	1.5
410	crusher	SSLG20×170	15
416	classic sieve	SFJH125	3
5. packing section
507	automatic packing scale	SDBY-P
508	seal conveyor machine	TFKB40	3
6.auxiliary system
Contact Us to Get Complete solution of Feed Production Plant
